ATI Super Damper for LS1 LS2 LS3 LS6 & L76

Manufacturer: ATI Performance
Manufacturer part number: 917246
$498.50
7.425in - Steel LW - 6/4 Grv - LS1-2-3-6 & L76 - 97-13 - Y Body & SS & G8 - 3 Ring
+ -

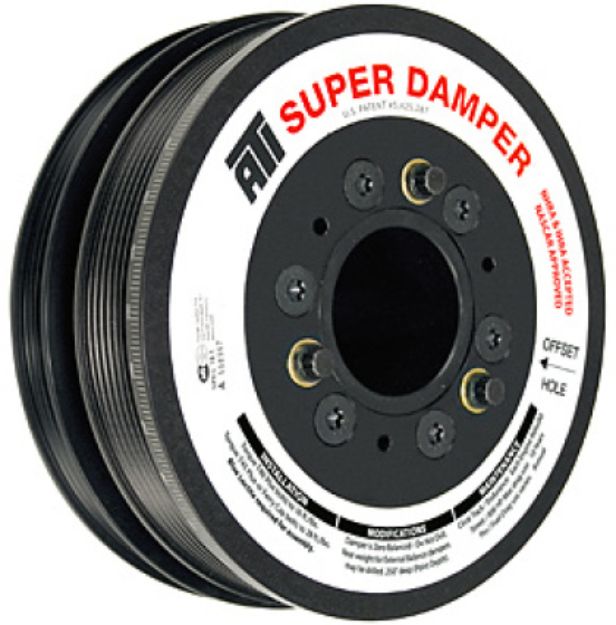

The patented ATI Super Damper is the only crankshaft damper designed exclusively for high performance Chevy engines.

  • Eliminates torsional crankshaft vibrations
  • Exceeds SFI 18.1 specs
  • Black zinc chromate finished
  • Tunable, rebuildable, and extremely efficient at ALL RPM
  • Laser engraved timing marks

The ATI Serpentine Super Damper contains grooves for serpentine belts machined into the outer damper shell. The dampers come standard with 6 outer grooves for standard OEM drive systems. 8 & 10 grooves are available for supercharger or turbo applications. Serpentine dampers are available in a variety of diameters. Crank hubs may be fitted with a 6 groove serpentine pulley to drive external oil pumps or vehicle accessories.

The Serpentine Series dampers fit all ATI GM-front crank hubs and can be adapted to many engine combinations providing maximum flexibility. These dampers are available in steel or lightweight hard-coated aluminum and come with Laser engraved timing marks. Exceeds SFI 18.1 specs.


ENGINE
DAMPER
PART #
OUTER
DIAMETER
WEIGHT
(LBS)
SHELL MATERIAL
SHELL ASSEMBLY #
RIBS
4 RIB REAR
PULLEY #
HUB # [2]
HUB
MATERIAL
LS1
'97-'04 C5

LS2
'05-'07 C6

LS3
'08-'13 C6

LS6
'01-'04 C5 Z06

G8/L76
‘08-'09

NEW “SS”
917246 [6]
7.53" (OEM)
9.75 LBS
STEEL
917016CSX
6
916734
916032M4
STEEL
